Rexroth Pump
Discover our high-performance Rexroth Pumps, engineered for reliability and efficiency in hydraulic systems. Perfect for industrial and mobile applications, ensuring smooth operation and durability.

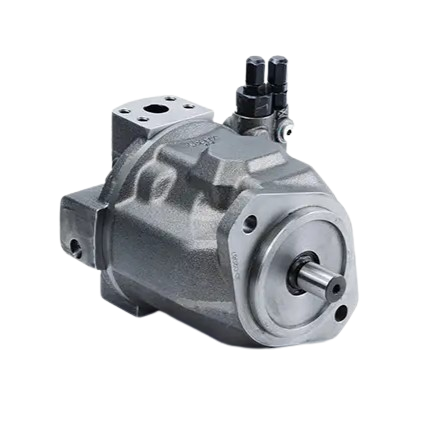

A10VSO31 Series Pump
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A10VSO31 Series Pump | Rated Pressure | 28MPa |
| Maximum Pressure | 35MPa | Speed Range | 2200-3900r/min |
| Nominal Displacement | 18, 28, 45, 71, 100, 140 | Rated Speed | 2050-3000r/min |
A10VSO32 Series Pump
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A10VSO32 Series Pump | Rated Pressure | 28MPa |
| Maximum Pressure | 35MPa | Speed Range | 1800-3000r/min |
| Nominal Displacement | 45, 71, 100, 140, 180 | Rated Speed | 1800-3000r/min |
A10VSO52-53 Series Pump
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A10VSO52-53 Series Pump | Rated Pressure | 25MPa |
| Maximum Pressure | 31.5MPa | Speed Range | 2500-4320r/min |
| Nominal Displacement | 10, 18, 28, 45, 60, 63, 72, 85, 100 | Rated Speed | 2300-3600r/min |
A11V Series pump
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A11V Series Pump | Rated Pressure | 35MPa |
| Maximum Pressure | 40MPa | Speed Range | 2100-3500r/min |
| Nominal Displacement | 40, 60, 75, 95, 130, 145, 190, 260 | Rated Speed | 1800-3000r/min |
A2FE Series Motor
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A2FE Series Motor | Rated Pressure | 35-40MPa |
| Maximum Pressure | 40-45MPa | Speed Range | 2000-6900/Min |
| Nominal Displacement | 28, 32, 45, 56, 63, 80, 90, 107, 125, 160, 180, 250, 355 | Rated Speed | 2240-6300r/min |
A2FM Series Motor
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A2FM Series Motor | Rated Pressure | 31.5-40MPa |
| Maximum Pressure | 35-45MPa | Speed Range | 1600-11000/min |
| Nominal Displacement | 5, 10, 12, 16, 23, 28, 32, 45, 56, 63, 90, 107, 125, 160, 180, 200, 250, 355, 500, 710, 1000 | Rated Speed | 1600-10000r/min |
A2FO Series Pump
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A2FO Series Pump | Rated Pressure | 31.5-40MPa |
| Maximum Pressure | 35-45MPa | Speed Range | 1200-8000/min |
| Nominal Displacement | 5, 10, 12, 16, 23, 28, 32, 45, 56, 63, 90, 107, 125, 160, 180, 200, 250, 355, 500, 710, 1000 | Rated Speed | 950-5600r/min |
A4VG Series Pump
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A4VG Series Pump | Rated Pressure | 40MPa |
| Maximum Pressure | 45MPa | Speed Range | 500-5000r/min |
| Nominal Displacement | 28, 40, 56, 71, 90, 125, 180, 250 | Rated Speed | 2400-4250r/min |
A4VSO Series Pump
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A4VSO Series Pump | Rated Pressure | 35MPa |
| Maximum Pressure | 40MPa | Speed Range | 1200-3200r/min |
| Nominal Displacement | 40, 71, 125, 180, 250, 355, 500, 750, 1000 | Rated Speed | 1000-2600r/min |
A6VE Series Motor
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A6VE Series Motor | Rated Pressure | 40MPa |
| Maximum Pressure | 45MPa | Speed Range | 3300-8750/min |
| Nominal Displacement | 28, 55, 80, 107, 140, 160, 250 | Rated Speed | 2500-5550r/min |
A6VM Series Motor
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A6VM Series Motor | Rated Pressure | 40MPa |
| Maximum Pressure | 45MPa | Speed Range | 2100-8750/min |
| Nominal Displacement | 28, 55, 80, 107, 140, 160, 200, 250, 355, 500, 1000 | Rated Speed | 1600-5550r/min |
A7VO Series Pump
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brand | Rexroth A7VO Series Pump | Rated Pressure | 35MPa |
| Maximum Pressure | 40MPa | Speed Range | 2560-4250/min |
| Nominal Displacement | 28, 55, 80, 107, 160 | Rated Speed | 1900-3150r/min |
